Luxlink Motorized Lighting

Luxlink201

Compact motorized lighting for limited ceiling space.

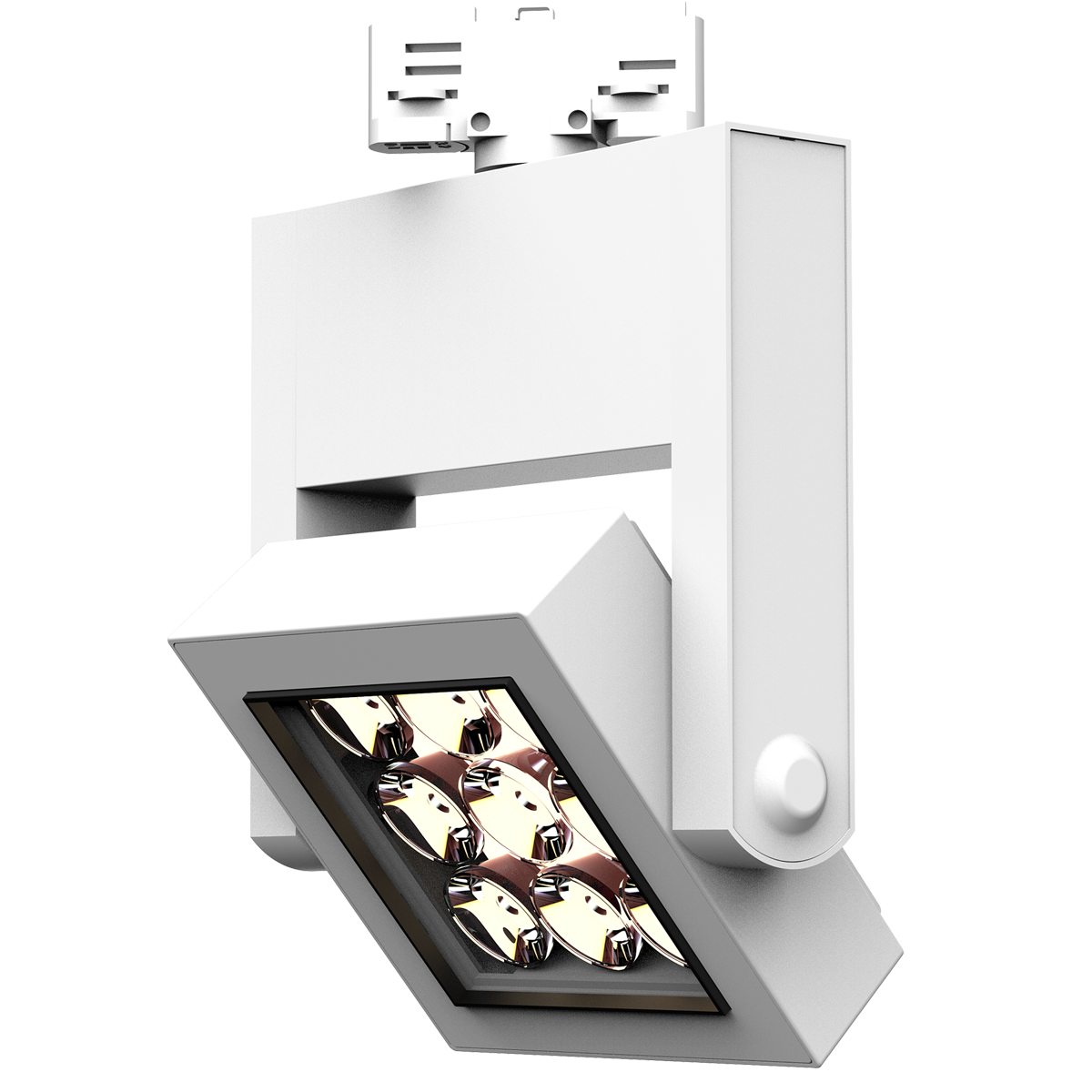

The Luxlink201 is a compact yet powerful motorized light with remote control. Its minimalist design and small footprint make it an ideal solution for space-constrained environments, without compromising on light output or quality. The Luxlink201 offers three fixed color temperature (CCT) options, delivering up to 2100 lumens of brightness, with a variety of fixed beam choices.

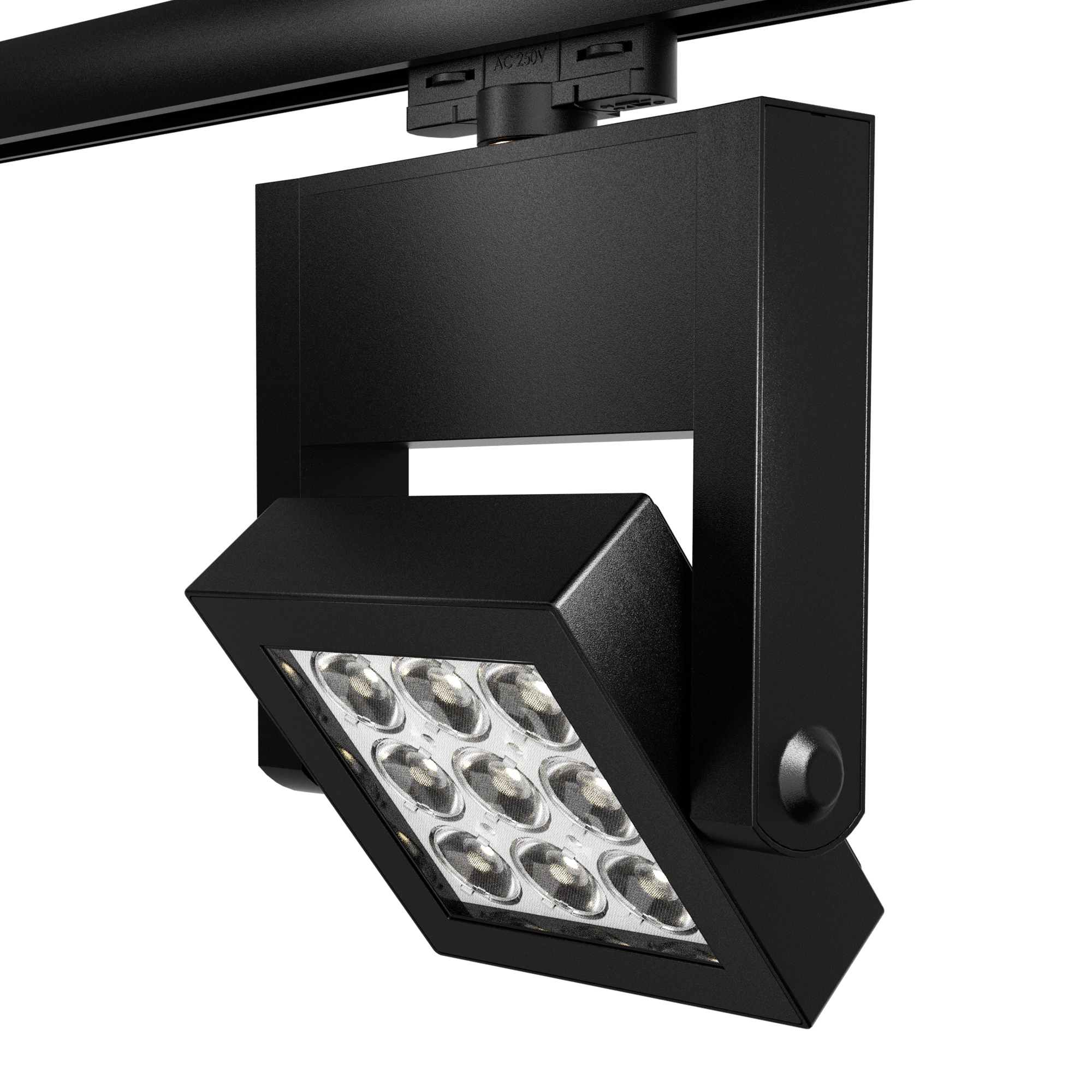

Luxlink201 motorized lighting product

Track Mounted / RayTrack Series

Luxlink201

PDF下面小字，Compact yet powerful track mounted motorized light with remote pan, tilt and optional Lensvector zoom control for space-constrained commercial interiors.

35W-65W 350° Pan / ±90° Tilt 3 Years L90 50,000 hrs min

Specify By

Build a configuration

CCT
Photometric Option
Dimming Method
Remote Control Method
Finish
Mounting Method
Order Code Luxlink201 - 05°/65W - 60W - 05deg - 2700K - CASAMBI - CASAMBI - WH - Track
FinishWH
Mounting MethodTrack
Photometric Option05°/65W
Dynamic Power65W
LED Power60W
Light SourceSMD/COB
CRI90
Selected CCT2700K
Selected Beam05°
Luminous Flux3045 lm
Peak Intensity169401 cd
Efficacy55.6 lm/W
Dimming MethodCASAMBI
Remote ControlCASAMBI
打印PDF IES DWG

Specification PDF

Configured PDF document

Open printable PDF page
Pan / Tilt350° Pan / ±90° Tilt
CCT2700K / 3000K / 3500K / 4000K / 2700K-6000K
DimmingCASAMBI / DMX512 / luxlinkAPP / DALI / 0-10V
ControlCASAMBI / DMX512 / luxlinkAPP
FinishWH / BK
Warranty3 Years
Back to products Next model Request files
