Luxlink Motorized Lighting

Luxlink203

Compact motorized lighting for limited ceiling space.

The Luxlink203 is a compact yet powerful motorized light with remote control. Its minimalist design and small footprint make it an ideal solution for space-constrained environments, without compromising on light output or quality. The Luxlink201 offers three fixed color temperature (CCT) options, delivering up to 2100 lumens of brightness, with a variety of fixed beam choices.

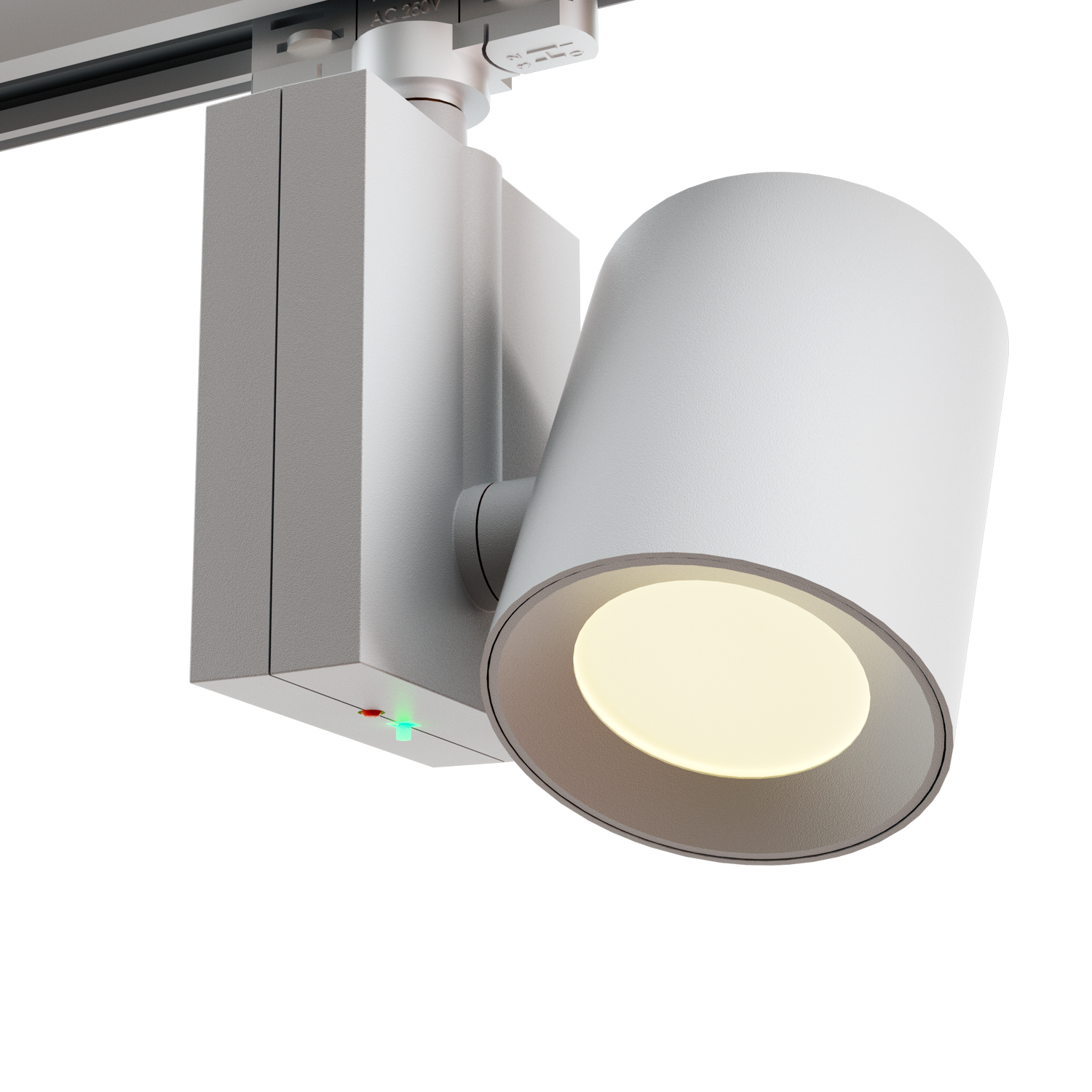

Luxlink203 motorized lighting product

Track Mounted / RayTrack Series

Luxlink203

PDF下面小字，Compact yet powerful track mounted motorized light with remote pan, tilt and optional Lensvector zoom control for space-constrained commercial interiors.

30W-35W 350° Pan / ±90° Tilt 3 Years L90 50,000 hrs min

Specify By

Build a configuration

CCT
Photometric Option
Dimming Method
Remote Control Method
Finish
Mounting Method
Order Code Luxlink203 - 06°/30W - 25W - 06deg - 2700K - CASAMBI - CASAMBI - WH - Track Mounted
FinishWH
Mounting MethodTrack Mounted
Photometric Option06°/30W
Dynamic Power30W
LED Power25W
Light SourceSMD/COB
CRI90
Selected CCT2700K
Selected Beam06°
Luminous Flux1117 lm
Peak Intensity68000 cd
Efficacy45.6 lm/W
Dimming MethodCASAMBI
Remote ControlCASAMBI
打印PDF IES DWG

Specification PDF

Configured PDF document

Open printable PDF page
Pan / Tilt350° Pan / ±90° Tilt
CCT2700K / 3000K / 3500K / 4000K / 2700K-6000K
DimmingCASAMBI / DMX512 / luxlinkAPP / DALI / 0-10V
ControlCASAMBI / DMX512 / luxlinkAPP

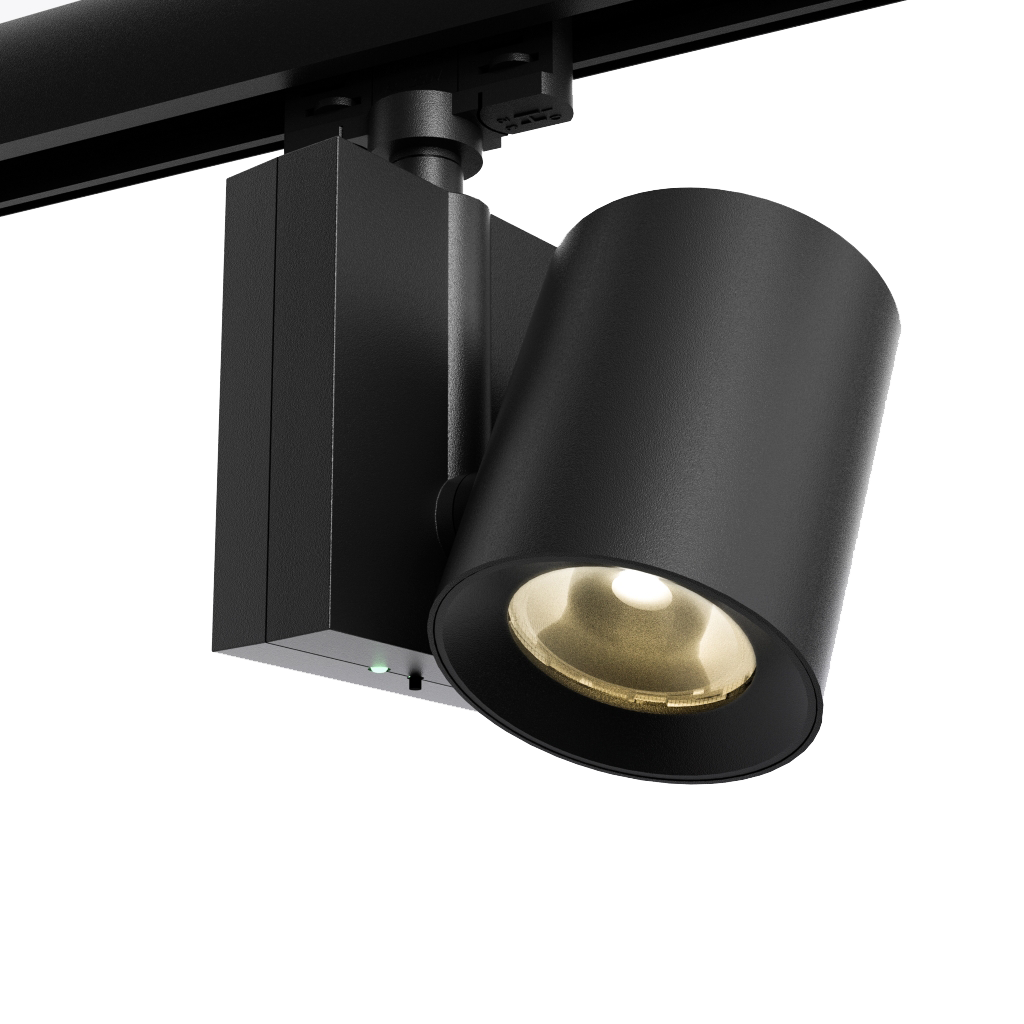

FinishWH / BK
Warranty3 Years
Back to products Next model Request files
