Luxlink Motorized Lighting

Luxlink701-X

Compact motorized lighting for limited ceiling space.

The Luxlink701-X is a compact yet powerful motorized light with remote control. Its minimalist design and small footprint make it an ideal solution for space-constrained environments, without compromising on light output or quality. The Luxlink701-X offers three fixed color temperature (CCT) options, delivering up to 2100 lumens of brightness, with a variety of fixed beam choices.

Luxlink701-X motorized lighting product

Surface Mounted / RayTrack Series

Luxlink701-X

PDF下面小字，Compact yet powerful track mounted motorized light with remote pan, tilt and optional Lensvector zoom control for space-constrained commercial interiors.

25W~50W 360° Pan / ±35° Tilt 3 Years L90 50,000 hrs min

Specify By

Build a configuration

CCT
Photometric Option
Dimming Method
Remote Control Method
Finish
Mounting Method
Order Code Luxlink701-X - 06°/25W - 20W - 06deg - 2700K - CASAMBI - CASAMBI - WH - Surface
FinishWH
Mounting MethodSurface
Photometric Option06°/25W
Dynamic Power25W
LED Power20W
Light SourceSMD/COB
CRI90
Selected CCT2700K
Selected Beam06°
Luminous Flux723 lm
Peak Intensity68000 cd
Efficacy46.6 lm/W
Dimming MethodCASAMBI
Remote ControlCASAMBI
打印PDF IES DWG

Specification PDF

Configured PDF document

Open printable PDF page
Pan / Tilt360° Pan / ±35° Tilt
CCT2700K / 3000K / 3500K / 4000K / 2700K-6000K
DimmingCASAMBI / DMX512 / luxlinkAPP / DALI / 0-10V
ControlCASAMBI / DMX512 / luxlinkAPP

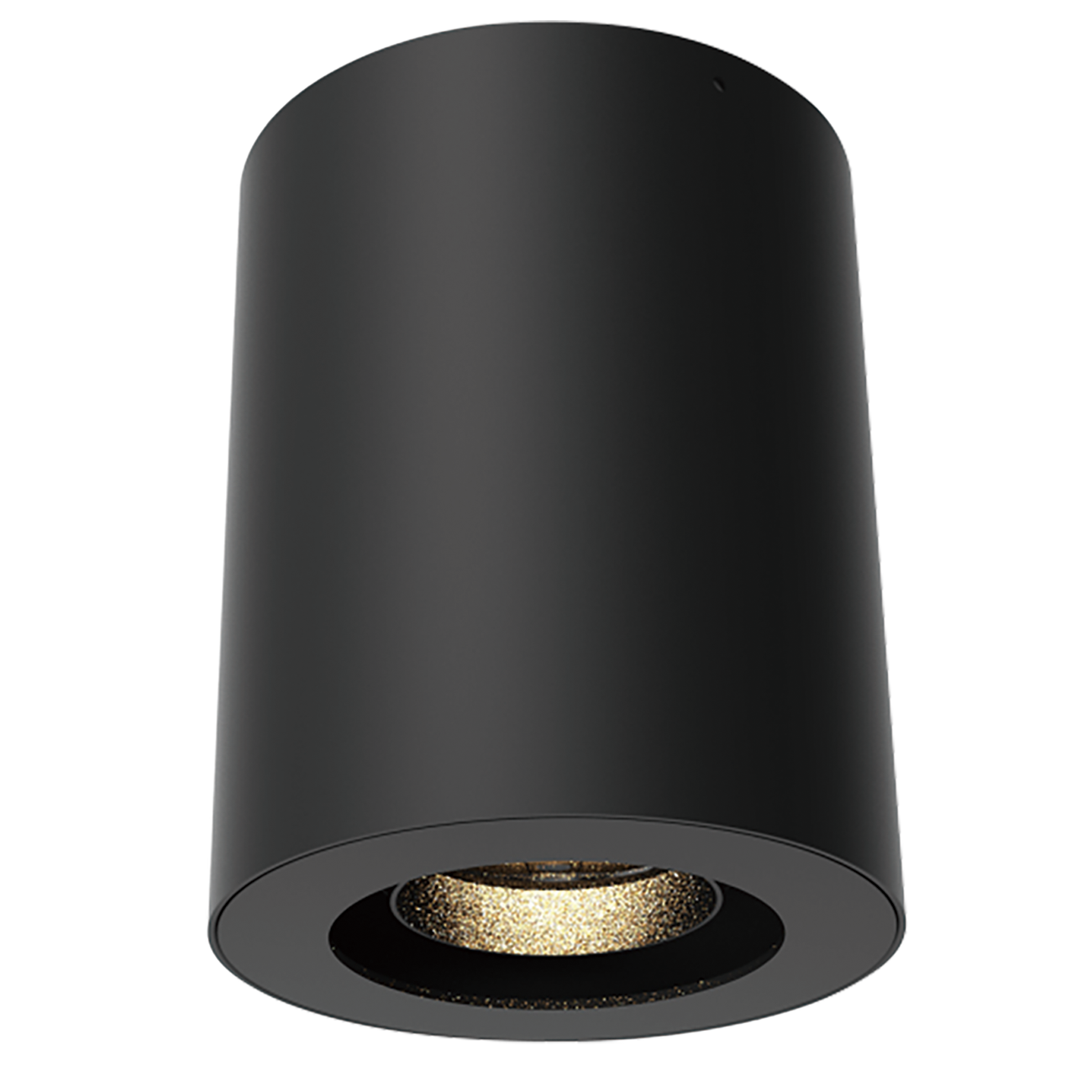

FinishWH / BK
Warranty3 Years
Back to products Next model Request files
