Luxlink Motorized Lighting

Luxlink204

Compact motorized lighting for limited ceiling space.

Luxlink204 combines a compact body, remote pan and tilt adjustment, fixed CCT or tunable white options, and precise beam control for hospitality, gallery, museum and retail interiors.

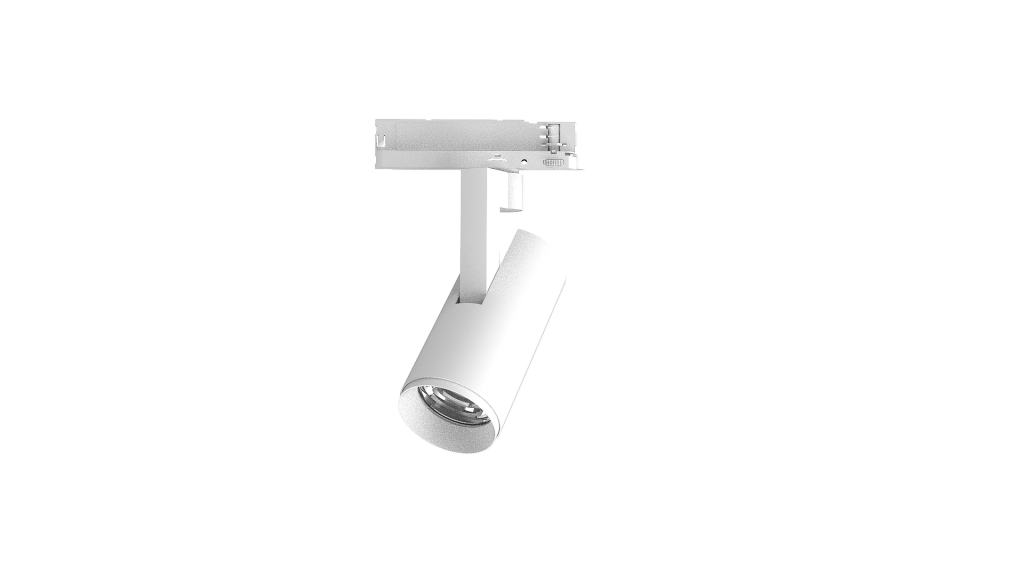

Luxlink204 motorized lighting product

Track Mounted / RayTrack Series

Luxlink204

Its minimalist design and small footprint make it an ideal solution for limited ceiling space without compromising light output or quality. Fixed CCT options and tunable white are available, with multiple fixed beam choices and Lensvector-driven zoom options for precise beam control.

10W-50W 350° Pan / 90° Tilt 3 Years L90 50,000 Hrs min

Specify By

Build a configuration

CCT
Photometric Option
Dimming Method
Remote Control Method
Finish
Mounting Method
Order Code Luxlink204 - 05°/25W - 27 - CASAMBI - CASAMBI - WH - Track
FinishWH
Mounting MethodTrack
Photometric Option05°/25W
Dynamic Power25W
LED Power20W
Light SourceCOB
CRI90
Selected CCT2700K
Selected Beam05°
Luminous Flux735 lm
Peak Intensity61770 cd
Efficacy37.3 lm/W
Dimming MethodCASAMBI
Remote ControlCASAMBI
打印PDF IES DWG

Specification PDF

Configured PDF document

Open printable PDF page
Pan / Tilt350° Pan / 90° Tilt
CCT2700K / 3000K / 3500K / 4000K / 2700K-6000K
DimmingCASAMBI / DMX512 / luxlinkAPP / DALI / 0-10V
ControlCASAMBI / DMX512 / luxlinkAPP
FinishWH / BK
Warranty3 Years
Back to products Next model Request files
