Luxlink Motorized Lighting

Luxlink704

Compact motorized lighting for limited ceiling space.

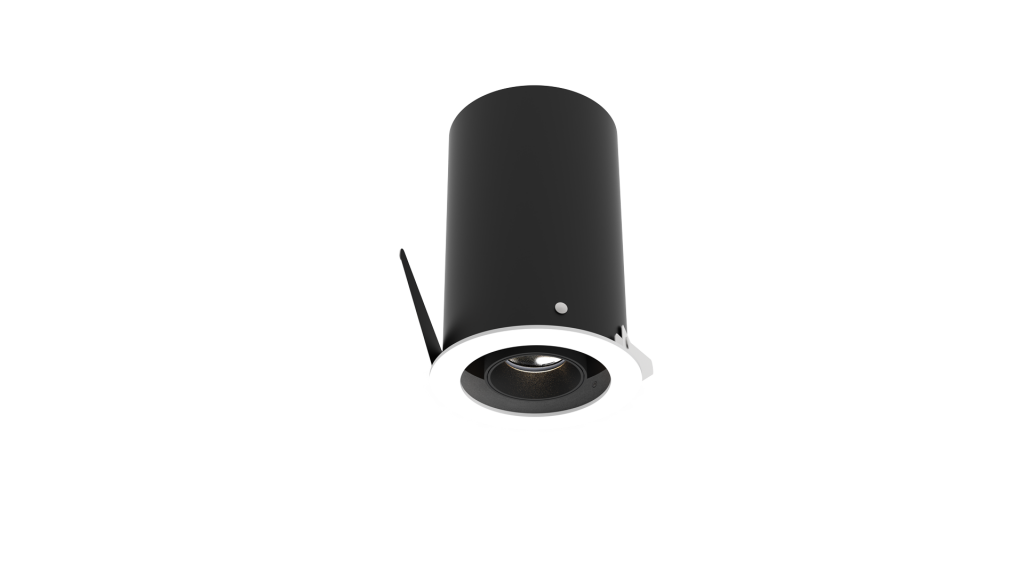

The Luxlink704 is a compact yet powerful motorized light with remote control. Its minimalist design and small footprint make it an ideal solution for space-constrained environments, without compromising on light output or quality. The Luxlink704 offers three fixed color temperature (CCT) options, delivering up to 2100 lumens of brightness, with a variety of fixed beam choices.

Luxlink704 motorized lighting product

Recessed Mounted / RayTrack Series

Luxlink704

PDF下面小字，Compact yet powerful track mounted motorized light with remote pan, tilt and optional Lensvector zoom control for space-constrained commercial interiors.

12W 360° Pan / ±35° Tilt 3 Years L90 50,000 hrs min

Specify By

Build a configuration

CCT
Photometric Option
Dimming Method
Remote Control Method
Finish
Mounting Method
Order Code Luxlink704 - 12°/12W - 8W - COB - 2700K - CASAMBI - CASAMBI - WH - Recessed
FinishWH
Mounting MethodRecessed
Photometric Option12°/12W
Dynamic Power12W
LED Power8W
Light SourceCOB
CRI90
Selected CCT2700K
Selected BeamCOB
Luminous Flux497 lm
Peak Intensity4005 cd
Efficacy62.8 lm/W
Dimming MethodCASAMBI
Remote ControlCASAMBI
打印PDF IES DWG

Specification PDF

Configured PDF document

Open printable PDF page
Pan / Tilt360° Pan / ±35° Tilt
CCT2700K / 3000K / 3500K / 4000K / 2700K-6000K
DimmingCASAMBI / DMX512 / luxlinkAPP / DALI / 0-10V
ControlCASAMBI / DMX512 / luxlinkAPP
FinishWH / BK
Warranty3 Years
Back to products Next model Request files
