Luxlink Motorized Lighting

Luxlink202

Compact motorized lighting for limited ceiling space.

The Luxlink202 is a compact yet powerful motorized light with remote control. Its minimalist design and small footprint make it an ideal solution for space-constrained environments, without compromising on light output or quality. The Luxlink201 offers three fixed color temperature (CCT) options, delivering up to 2100 lumens of brightness, with a variety of fixed beam choices.

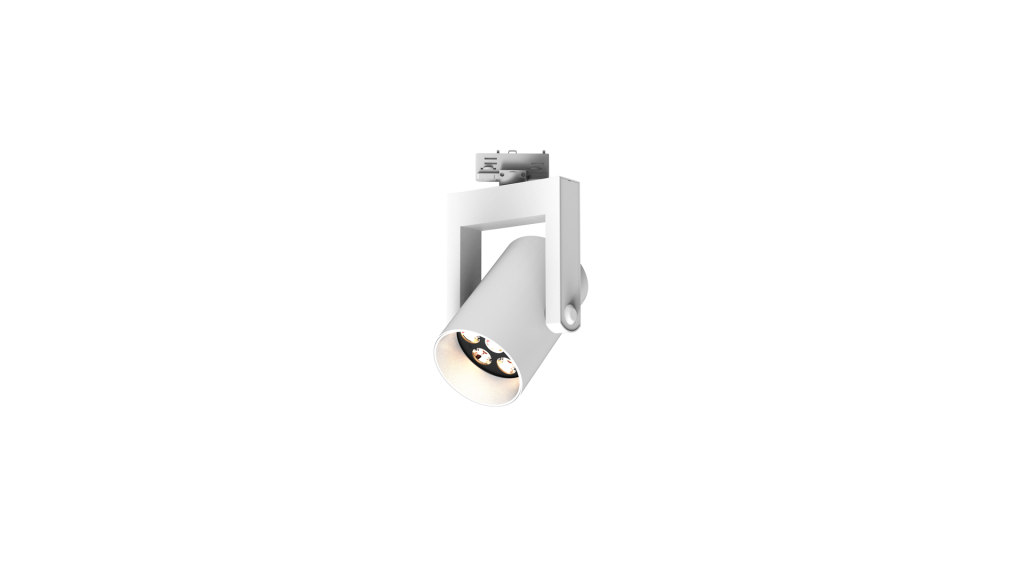

Luxlink202 motorized lighting product

Track Mounted / RayTrack Series

Luxlink202

PDF下面小字，Compact yet powerful track mounted motorized light with remote pan, tilt and optional Lensvector zoom control for space-constrained commercial interiors.

35W-65W 350° Pan / ±90° Tilt 3 Years L90 50,000 hrs min

Specify By

Build a configuration

CCT
Photometric Option
Dimming Method
Remote Control Method
Finish
Mounting Method
Order Code Luxlink202 - 05°/50W - 45W - 05deg - 2700K - CASAMBI - CASAMBI - WH - Track Mounted
FinishWH
Mounting MethodTrack Mounted
Photometric Option05°/50W
Dynamic Power50W
LED Power45W
Light SourceSMD/COB
CRI90
Selected CCT2700K
Selected Beam05°
Luminous Flux2520 lm
Peak Intensity101679 cd
Efficacy56.6 lm/W
Dimming MethodCASAMBI
Remote ControlCASAMBI
打印PDF IES DWG

Specification PDF

Configured PDF document

Open printable PDF page
Pan / Tilt350° Pan / ±90° Tilt
CCT2700K / 3000K / 3500K / 4000K / 2700K-6000K
DimmingCASAMBI / DMX512 / luxlinkAPP / DALI / 0-10V
ControlCASAMBI / DMX512 / luxlinkAPP
FinishWH / BK
Warranty3 Years
