Luxlink Motorized Lighting

Recessed / RayTrack Series

Luxlink705

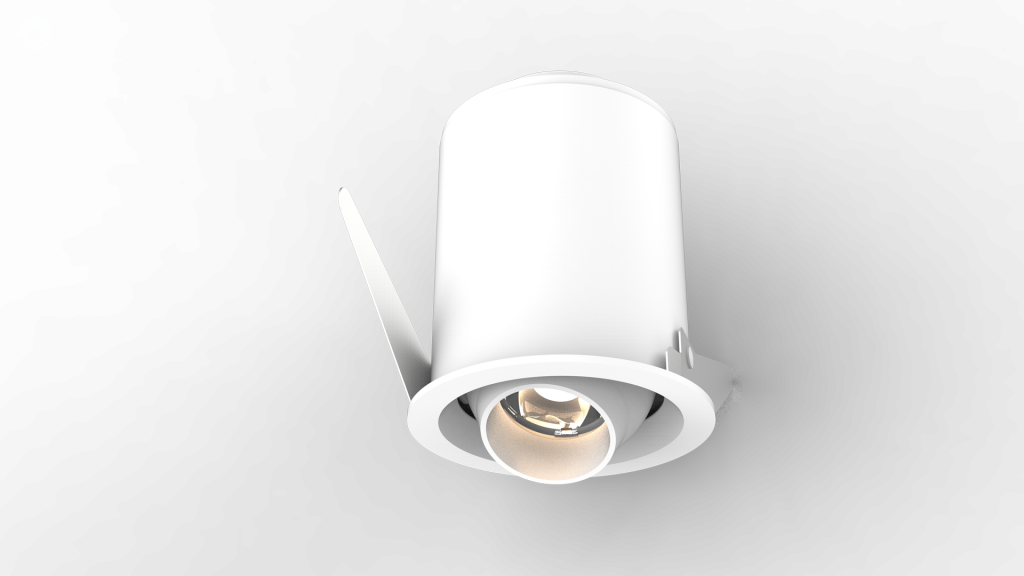

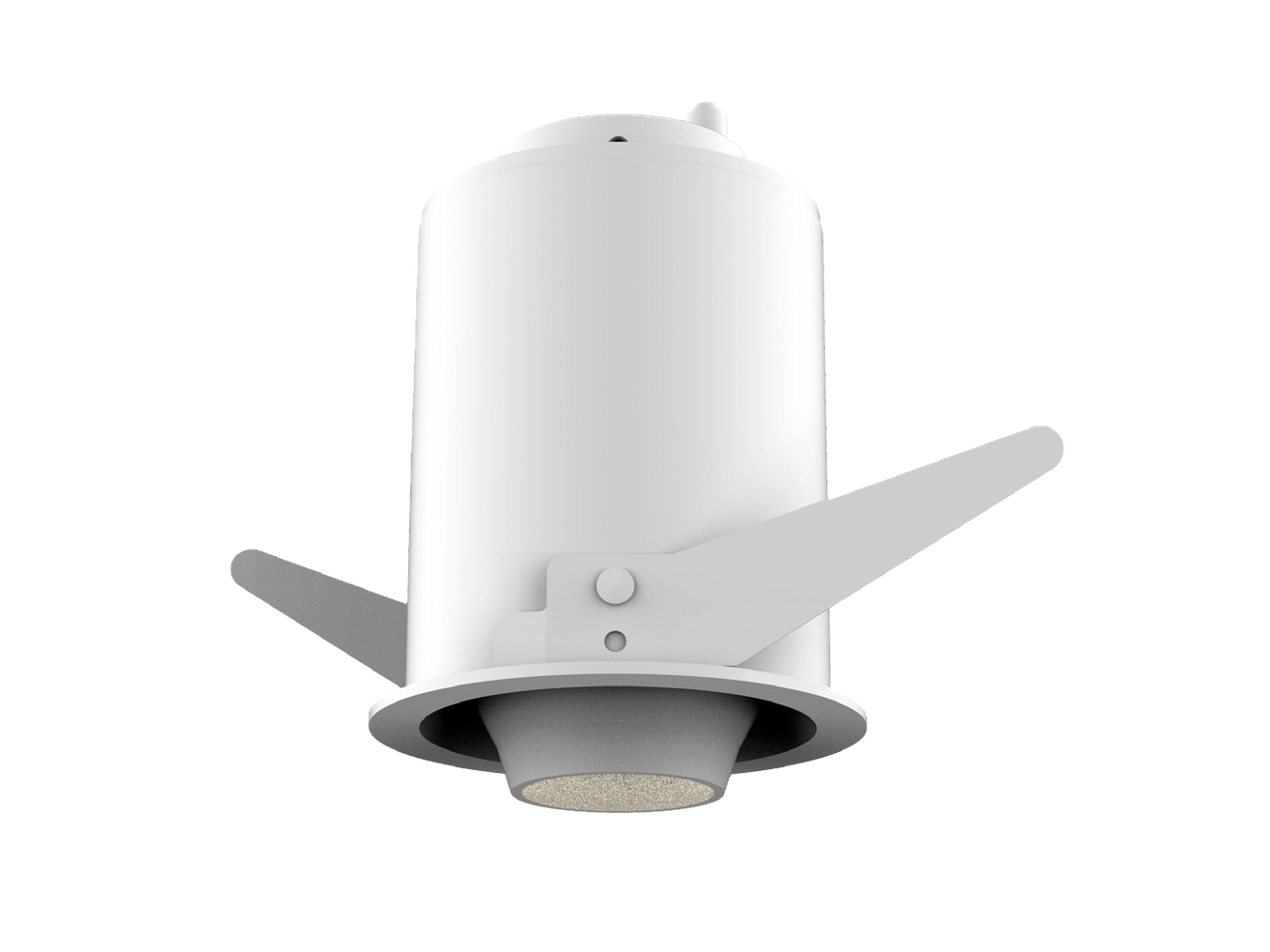

Mini recessed motorized light for low-profile accent lighting. Built for remote-controlled motorized lighting scenes in hotels, galleries, museums, retail and event spaces.

12W 360° Pan / ±30° Tilt 3 Years L90 50,000hrs min

Specify By

Build a configuration

CCT
Light Source
CRI
LED Power
Beam Angle
Driver Option
Motor Control
Finish
Order Code Luxlink705 - 12W - 12deg - 2700K - CASAMBI - CASAMBI - White
FinishWhite
Mounting MethodRecessed
Photometric Option
Dynamic Power12W
LED Power12W
Light SourceCOB
CRI90
Selected CCT2700K
Selected Beam12°
Luminous Flux320-560 lm
Peak Intensity1537-4005 cd
Efficacy51-82 lm/W
Dimming MethodCASAMBI
Remote ControlCASAMBI
Pan / Tilt360° Pan / ±30° Tilt
Zoom12° / 24° / 36°
DimmingCASAMBI / DMX512 / DALI / 0-10V
FinishWhite / Black
Voltage110-240V AC
Warranty3 Years

Features

Remote-controlled focus for changing scenes.

  • Motorized pan and tilt adjustment for precise beam positioning from the ground.
  • Scene recall stores preset focus positions and lighting settings for repeated events.
  • Wireless control supports app-based adjustment and common project control protocols.
  • Compact minimalist body integrates into hospitality, gallery, museum and retail interiors.

Mechanical

Mounting and construction.

Mounting
Recessed
Material
Aluminum
Power Source
CV Power Supply
Dimensions
Ø84 x 112 mm, cutout Ø72-75 mm
Weight
~1.20kg
Lifetime
L90 50,000 hrs min
